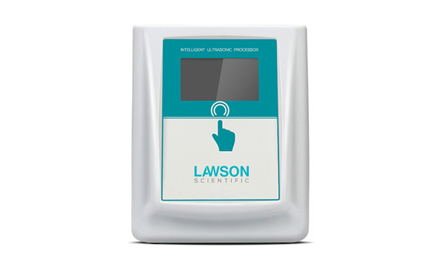

• Hand-held Ultrasonic Cell Crusher
  • DH-250
  • Power 250W, Crushing capacity 0.5-100ml.
  • DH-250
  • Hand-held Ultrasonic Cell Crusher
  • Power 250W, Crushing capacity 0.5-100ml.
Hand-held Ultrasonic Cell Crusher is a new product with complete functions and reliable performance. The instrument adopts LED display, and has two working modes of automatic and manual (foot pedal), with ultrasound time and power arbitrarily set. The sample temperature detection is displayed, and the frequency is automatically tracked.
Product Introduction
DH-250 Hand-held Ultrasonic Cell Crusher is a versatile and multi-purpose instrument that uses ultrasonic cavitation effect in liquids. It can be used for the crushing of various animals, plants, viruses, cells, and bacteria, as well as for emulsification, dispersion, homogenization, extraction, defoaming, cleaning, and preparation of nano materials, dispersion, and acceleration of chemical reactions, etc.
Hand-held Ultrasonic Cell Crusher is a new product with complete functions and reliable performance. The instrument adopts LED display, and has two working modes, automatic and manual (foot switch). The ultrasonic time and power can be arbitrarily set, the sample temperature can be detected and displayed, and the frequency can be automatically tracked.


Product Features
Can be used for enzymatic assays in 96-well plates or a large number of small test tubes arranged in a row. Handheld ultrasonic transducer controls ultrasound in a point-and-click manner, allowing multiple samples to complete ultrasonic treatment in a short period of time.
◆Used for crushing animal and plant cells, bacteria, spores, or tissues, extracting proteins from cells, and conducting scientific cultivation experiments on viruses and vaccines.
◆Accelerates the reaction speed of chemical and physical reactions and accelerates liquid degassing.
◆Used for scientific research analysis such as crude oil dilution, oil-water emulsification, and accelerating crystallization separation, glass pulp preparation, etc.
◆Disperses rare earths, various inorganic minerals, and prepares near-nano latex homogenized mixtures with a particle size of one percent.
◆Quickly and powerfully cleans fluids in micro-holes and blind holes of molds.


Technical Parameters
Model: DH-250
Frequency: 19.5-20.5KHz
Power: 250W
Standard Amplitude: Φ3
Optional Amplitude: Φ2 / Φ6
Crushing Capacity: 0.5-100ml
Temperature Control: Ultrasonic protection with alarm function
Control Mode: Automatic, manual switchable (foot switch optional)
Pulser: Closed-loop 0.1-99s adjustable, open-loop 0.1-99s adjustable
Duty Cycle: 1-99%
Power Supply: 220/110V 50Hz/60Hz
Power Supply Chassis Size: 270*200*140mm
Net Weight: 9.1kg
Host + Transducer Weight: 10.8kg
Outer Packing Size: 510×275×390mm


Probe Model Selection
Model Cell Disruption Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-100ml


Single Page - Color Page
Name: Author: Action:
Hand-held Ultrasonic Cell Crusher DH-250 Hand-held Ultrasonic Download
Product List
DH-250 Unit
Host Machine Unit
Transducer independent support pair
Vibration System (Transducer Assembly) Set
Soundproof box set
Special Wrench (used for disassembling the amplitu Set
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
Optional
1
1
1
1
1
